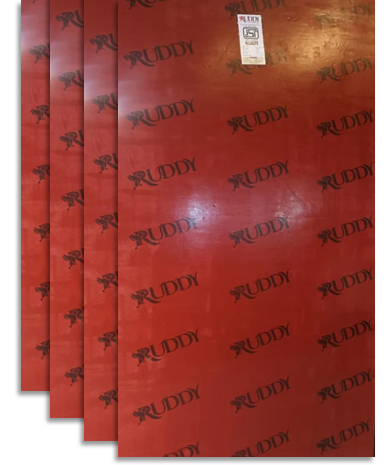

Sukhna Ruddy Shuttering Plywood is certified from IS:4990 and is a compact and extremely tough premium- quality structural plywood. The technique used to manufacture Shuttering plywood is a unique one, called the Heating-Cooling cycle process.

Using selected hardwood veneers, phenol formaldehyde resin of BWP grade, conforming to IS 848:1974, is issued for bonding, which is generally used in high-end construction. The wonder product we get is both conceptually and practically innovative; it's a product that can withstand the corrosive action of cement, water, as well as sunlight.

It is manufactured by selected high-quality veneers and designed to offer better performance, across all applications related to Shuttering Works.

Flexi Plywood

What Makes Us Different

  • Higher GSM Phenolic Film
  • Mirror Surface Finish
  • High Density
  • Pree Press Technology
  • 100% Boiling Water Proof
  • Anti Swelling
  • Excellent Nail / Screw capacity
  • Uniform Thickness.

Technical Specification [IS:4990]

Prescribed Test IS: 4990
ISI Requirement Observed Value
Moisture Content 5-15%

8%

Modulus of Elasticity
Along the grain of Face Veneer

Avg 7500 N/mm2
Min. Individual 6700 N/mm2

8400 N/mm2
6910 N/MM2

Modulus of Rupture
Along the Grains of Face Veneer

Avg 50 N/mm2
Min. Individual 45 N/mm2

53 N/mm2
47 N/MM2

Glue Adhesion in Dry State
Glue Shear Strength

Avg 1350 N
Min. Individual 1100 N

1430 N
1240 N

Water Resistance Test
Glue Shear Strength

Avg 1000 N
Min. Individual 800 N

1240 N
910 N

Tensile Strength
Parallel to the grain direction

Perpendicular to the grain direction

Should not be less than 32.5N/mm2

Should not be less than 22.5N/mm2

38.8 N/mm2

26.2 N/mm2

Size in Feet: 8X4
Weight: 30 KG,34 KG
Thickness in MM: 8MM,12 MM,18 MM
