Sukhna BWR & MR grade plywood is the most popular brand in the Indian market and full fill every individual dreams & Plan for his/her dream home where they can enjoy & experience of life and decorate the home in a memorable way.

Our BWR & MR Grade plywood made with high density Poplar & Eucalyptus core and panel which was peeled from fram-grown Eucalyptus and poplar tree with uniform thickness. Our plywood pressed with inhouse manufactured regin and uniform temperature & pressure in supervision of highly qualified IPIRTI passed member.

partner

What Makes Us Different

Strong Bonding:

  • a. MR Grade: Sukhna Ply MR Grade plywood is bonded with high quality UF Grade regin to resist 12hrs WWR against 3hrs as per BIS.
  • b. BWR Grade: Sukhna Ply BWR grade is bonded with PF (Phenol Formaldehyde) regin which resist 36hrs Boiling test against 8 hrs of BIS.

Dual Press Technology:

Sukhna Ply BWR & MR Grade plywood is manufactured with dual press technology by pree-press so that products are Warp Free, Super Strong Bonding & Gap Less.

Borer & Termite Free:

Sukhna Ply made from mature timber that have self-termite resistance and our ply glue line treated by Anti-Termite Chemical to make plywood borer and termite free.

Excellent Nail holding Capacity:

Sukhna BWR & MR grade ply is manufactured from selected species core veneer and 100% dried with advance core dryer machine with required moisture and all core veneer used only after proper conditioning to make ply excellent screw / nail holding.

All weather proofs:

Sukhna all product is all weather proof as our manufacturing process is advanced balanced construction and controlled as per the SOP. Our Raw material is also inhouse manufacturing.

Thickness: 04MM, 06MM, 08/09MM, 12MM, 15/16MM, 18/19MM, 25MM or as per requirement.

Sizes: 8x4, 7x4, 6x4, 8x3, 7x3, 6x3

Technical Specification [IS:303]

Properties As per the BIS:303 Vs our Product Test Results generally obtained

SN Prescribed Test Grade BWR Grade MR
ISI Requirement Observed Value ISI Requirement Observed Value
1.

Dimensions

  • Length
  • Width
  • Thickness
  • Edge Straightness
  • Squareness

+6mm / -0mm
+3mm / -0mm

≥ 6mm: ±5%
< 6mm: ±10%

< 0.2%
< 0.2%

 Within Limit
Within Limit

Within Limit



0.11%
0.12%		 +6mm / -0mm
+3mm / -0mm

≥ 6mm: ±5%
< 6mm: ±10%

< 0.2%
< 0.2%

 Within Limit
Within Limit
Within Limit
0.14%
0.12%
2.

Moisture Content

 5-15% 8% 5-15% 7%
3.

Glue Adhesion

  • Wate resistance test
  • Mycological
  • Static Bending Strength
  • Modulus of elasticity

Along the Grain (Avg)
Across the Grain (Avg)

  • Modulus of rupture

Along the Grain (Avg)
Across the Grain (Avg)

Pass Standard

3 Cycle of 8 Hrs Boiling & 16hrs Drying

5000 N /mm2
2500 N /mm2
40 N /mm2
20 N /mm2

Excellent

Withstand
6700 N /mm2
3800 N /mm2
59 N /mm2
33 N /mm2

Pass Standard

3 Cycle of 3hrs at 600C in Water& 8hrs Drying
Pass Standard
4000 N / mm2
2000 N /mm2
30 N /mm2
15 N /mm2

Excellent

Withstand
Excellent
5400 N /mm2
2800 N /mm2
46 N /mm2
24 N /mm2

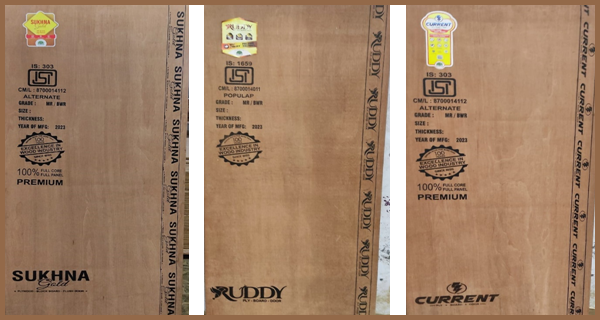

Our BWR & MR Grade Brand Range
